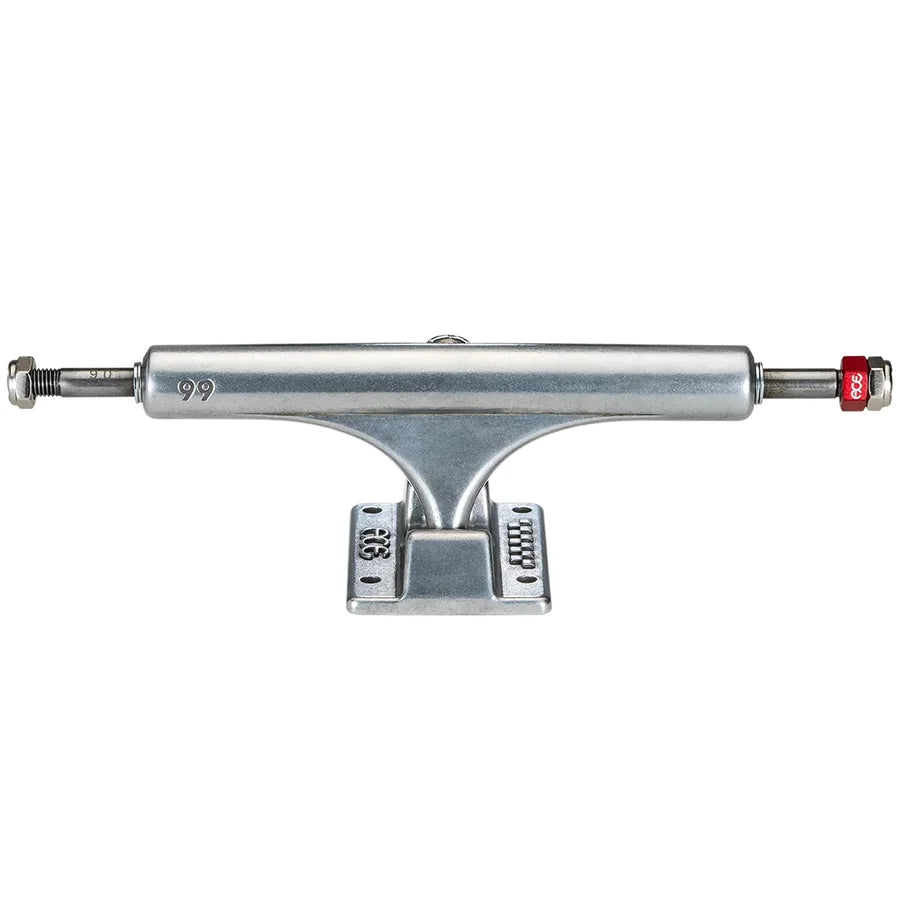

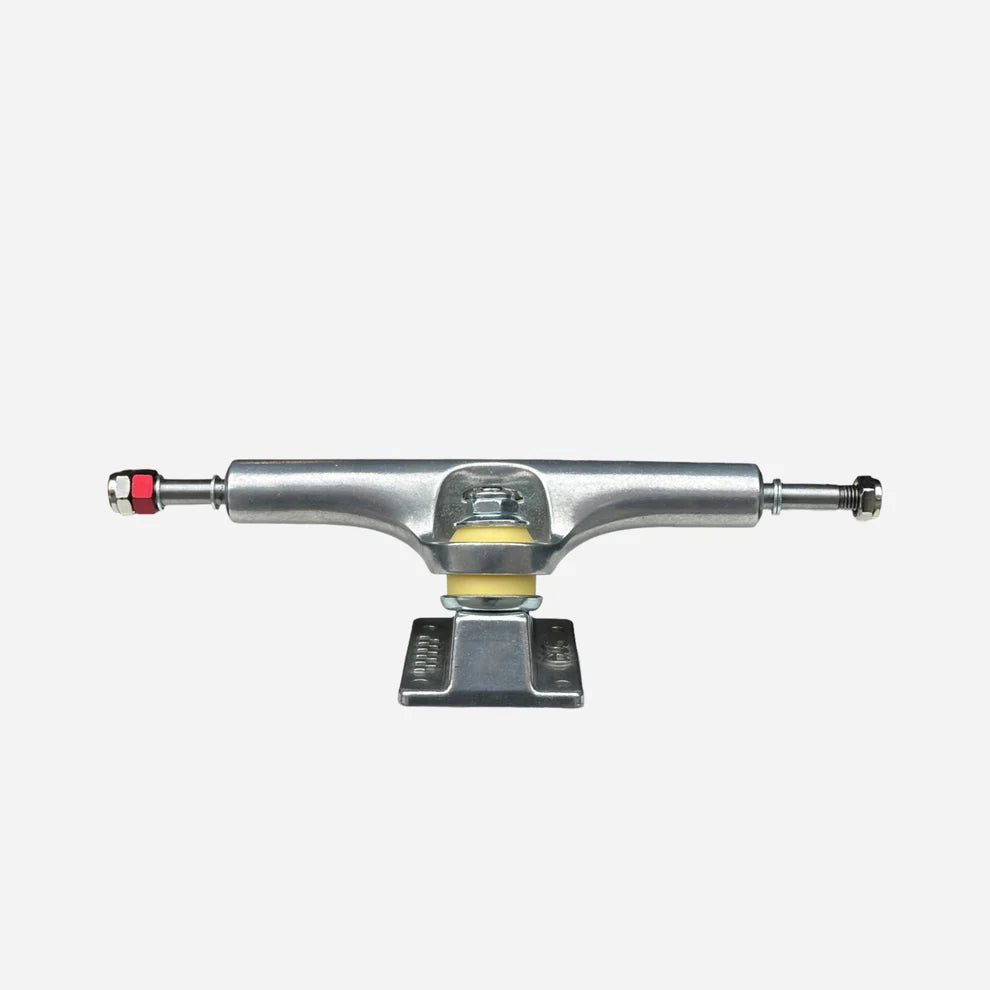

Ace AF1 Polished Trucks 66 (set of 2)

The all new Ace AF1 features game changing performance without deviating from the original Ace Geometry.

The Ace AF1 is carefully manufactured using Ace’s proprietary casting process.

Years in development the Ace AF1 has a 70% increase in the aluminiums’s structural integrity making it the strongest cast truck on the market.

Recommend Deck width 8.75 “ - 9.25”
Axle Width 9.0” (229mm)

Hanger Width 6.4”  (163 mm)

Truck Height 2.1 “  (53mm)

weight 14.5 oz

Manufactured with high quality AA 356.2 alloy

True T6 heat treated baseplates and hangers

SAE 4140 steel alloy axles ,oversized to eliminate bearing wobble

Patent pending retreading axle nuts … no more damaged axle ends !

Machine faced hanger ends for precise bearing contact

Medium-soft bushings designed for a carvy responsive feel,split duoro 91a top 12 mm ,86a bottom 14mm hand poured urethane.

Refined bushing and cup washer shapes for a cleaner turn

Durable hand poured 96 a urethane pivot bushings for smooth as silk response
